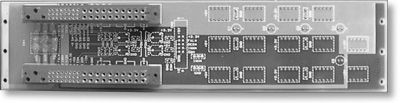

| Backplane for CompactPCI Power Supply 650-POB Family |
|
■Features
- This is a backplane for a plug-in power supply conforming to the PICMG2.11 REV1.0 specification.
- There are 2 types, 3U and 6U sizes. Each type permits duplexing the power supply.
 |
 |
||
 |
|||
|
|||
| Specifications | |
| PCB specification | FR-4 (1.6t) |
| Connector | PCI47M400A1 manufactured by Positronic |
| Power feed method | Nylon connector manufactured by AMP. |
 |
|
|
|
|
|
 |
 |
 |
 |
|
|
