| Pallet type PCI Bridge 651-PPBB Famly |
|
■Features
- This is a pallet type PCI/PCI bridge board for bus extension of a CompactPCI bridge mounting slot effective type.
- The 3.3V core power supply of the device is supplied from 5V by the regulator, so this bridge can be operated by a single 5V power supply.
- The interrupt routing for the primary bus and the secondary bus can be set by jumper.
|
 |
| Specifications | |
| PCB specification | FR-4 (1.6t), 8 layers |
| Connector | 2mm HM connector |
| PCI/PCI bridge | 651-PPBB64RHB Intel21154(64bit) 651-PPBB64LHB |
| Operating temperature | 0〜60℃ |
| Power consumption | 5V,1A(max) |
| Order code | 651-PPBB64RHB(64Bit) 651-PPBB64LHB(64Bit) |
|

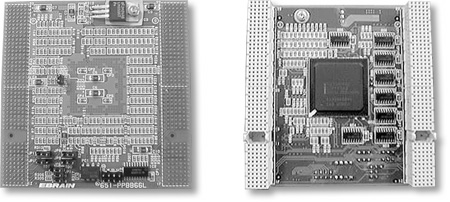

| Pallet type PCI Bridge 651-PPBB66 Series |
|
■Features
- This is a pallet type PCI/PCI bridge board for bus extension of a CompactPCI bridge mounting slot effective type.
- The 3.3V core power supply of the device is supplied from 5V by the regulator, so this bridge can be operated by a single 5V power supply.
- The interrupt routing for the primary bus and the secondary bus can be set by jumper.
- It can be made 66 MHz 64-bit compliant.
 |
|
| Specifications | |
| PCB specification | FR-4 (1.6t), 10 layers |
| Connector | 2mm HM connector |
| PCI/PCI bridge | Intel21154（64bit） |
| Operating temperature | 0〜60℃ |
| Power consumption | 5V1A（MAX） |
