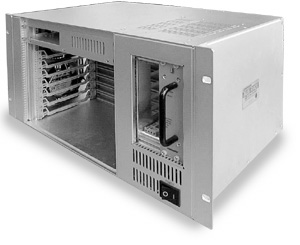

| PCI PICMG2.16 compliant compact self-powerd chassis (6U) 775-CPR07CSFP |
|
■Features
- This is a 6U-size CompactPCI 19-inch frame mount chassis incorporating a power supply, HD/FD driver fixing chassis, and backplane for PICMG2.16.
- Rear I/O board compliant 7 slots chassis.
- The power supply is compatible with the Hot Swap specification and up to 2 units can be operated in the form of redundant operation.
 |
 |
| Specifications | |
| External dimensions （mm） | W＝482.6 H＝221.4 D＝295.58 |
| Mounted power supply capacity | ＋5V、 25A* ＋3.3V、25A* ＋12V、3A −12V、1A （Up to 175W is usable） *Total 5V、3.3V is for 27A（MAX） |
| Order code for the attached backplane | 650-CDFP07WL A type conforming to the PIGMG2.16 650-POB02S |
|
| Chassis with a Built-in Power Supply for CompactPCI PICMG2.16 (6U) 775-CPR17CSFP |
|
■Features
- Supports the rear panel I/O board. Size 6U 19-inch frame mounted chassis built in with the CPCI PICMG2.16 compliant backplane.
- Each FAN unit can be individually plugged in and has an alarm function.
- The power supply is compatible with the Hot Swap specification and up to 2 units can be operated in the form of redundant operation.
 |
|
| Specifications | |
| External dimensions （mm） | W＝482.6 H＝354.8 D＝295 |
| Mounted power supply capacity | ＋5V、 50A ＋3.3V、50A ＋12V、 12A −12V、 2A （Up to 400W is usable.） |
| Order code for the attached backplane | 650-CSFP17WR A type conforming to the PICMG2.16 650-POB02W |
