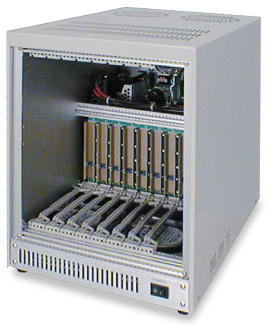

Chassis with a Built-in CompactPCI Power Supply　775-PRU10SU

■Features
  1. This is a system chassis with CompactPCI 10 slots (rack width) that incorporates a backplane (8 slots), power supply, and fan.
  2. The CPU board slot section can house a maximum width of 12HP (60mm).
  3. The peripheral slots permit mixing 6U and 3U by using option parts.

Specifications
External dimensions(mm)
W= 235.5
H= 320.5
D= 330
Mounted power supply capacity
+5V 30A
+12V 2.5A
-12V 2.5A
+3.3V 2A
Order code for the attached backplane
Backplane 650-CPCI08RA
Housing case 775-PRU10SU

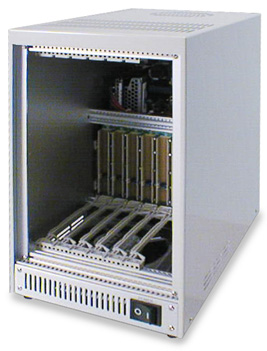

Chassis with a Built-in CompactPCI Power Supply　775-PRU08SU

■Features
  1. This is a system chassis with CompactPCI 8 slots (rack width) that incorporates a backplane (6 slots), power supply, and fan.
  2. The CPU board slot section can house a maximum width of 12HP (60mm).
  3. The peripheral slots permit mixing 6U and 3U by using option parts.

Specifications
External dimensions(mm)
W= 195
H= 320.5
D= 330
Mounted power supply capacity
+5V 30A
+12V 2.5A
-12V 2.5A
+3.3V 2A
Order code for the attached backplane
Backplane 650-CPCI06RA
Housing case 775-PRU08SU




Chassis with a Built-in CompactPCI Power Supply　775-PRU08SA

■Features
  1. This is a 3U-size CompactPCI desktop chassis incorporating a power supply, HD/FD driver fixing chassis, and backplane.
  2. This unit is most suitable for evaluation of the CompactPCI system.

Specifications
External dimensions(mm)
W= 435.8
H= 192.8
D= 250
Mounted power supply capacity
+5V 20A
+12V 10A
-12V 0.5A
+3.3V 5A
Order code for the attached backplane 650-CPCI08RA



Chassis with a Built-in CompactPCI Power Supply　775-PRU20SU

■Features
  1. This is a system chassis with CompactPCI 20 slots (rack width) that incorporates a backplane (14 slots), power supply, and fan.
  2. The CPU board slot section can house a maximum width of 12HP (60mm).
  3. The peripheral slots permit mixing 6U and 3U by using option parts.
  4. The HD/FD bracket (270-FH02W) is equipped in the standard specification.

Specifications
External dimensions(mm)
W= 438.7
H= 320.5
D= 330
Mounted power supply capacity
+5V 60A
+12V 4.3A
-12V 4.3A
+3.3V 10A
Order code for the attached backplane 650-CPCI14RA-BR




Chassis with a Built-in Power Supply for CompactPCI H110(6U)　775-PRU08WSTF

■Features
  1. This is a 6U-size CompactPCI 19-inch frame mount chassis incorporating a power supply, HD/FD and CD-ROM driver fixing chassis, and backplane for H110.
  2. The system slot permits plugging in the rear I/O board.
  3. The FAN unit permits plugging in independently and is provided with an alarm function.
  4. The power supply is compatible with the Hot Swap specification and up to 2 units can be operated in the form of redundant operation.

Specifications
External dimensions(mm)
W= 482.6
H= 354.8
D= 295
Mounted power supply capacity
+5V 50A(Max)
+12V 12A(Max)
-12V 2A(Max)
+3.3V 50A(Max)
Up to 400W is usable.
Order code for the attached backplane 650-CPCT08WR
650-POB02W
