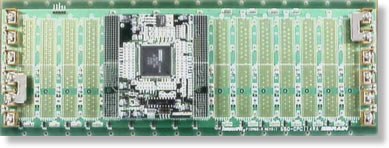

| Backplane PICMG2.0 Rev2.1 (14-slot) 650-CPCI14RA-BR |
|
■Features
- This backplane is provided with a pallet type PCI bridge module (651-PPBB64LHB) mounted from the rear face, having 3U size 14 slots (primary bus 7 slots + secondary bus 7 slots). (There are 16 slots as physical slots.)
- The PCI bridge fully supports the 7-slot bus mater of the secondary bus.
- The V I/O power supply can be set individually by the primary bus and the secondary bus.
 |
 |
| Specifications | |
| PCB specification | FR-4(4.6t), 10 layers |
| Connector | 2mm HM connector |
| Power feed method | Screw terminal and faston terminal +5V (Max 60A) GND +3.3V (Max 30A) VIO (Max 30A) +12V (Max 10A) -12V (Max10A) |
| Order code for only the backplane | 650-CPCI 14RA |
