| Backplane PICMG2.0 Rev2.1i6U-sizej 650-CPCIxxWR Family |
|
กFeatures
- This is a 6U-size backplane conforming to PICMG2.0 REV2.1.
- The a, b, c, d, and e rows of the connectors P3, P4, and P5 are open so that they may be used as rear panel I/O. (Long pins)
- The characteristic impedance is set to 65ถ}10.

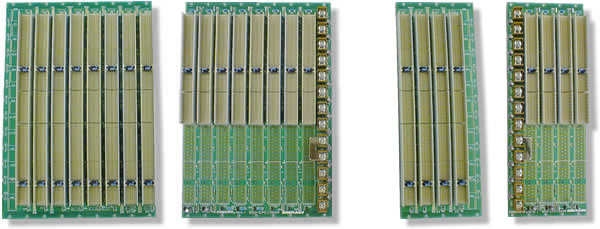

| i650-CPCI08WRj |
@ | i650-bPCI04WRj |
 |
| Specifications | ||||||||||||
| PCB Specification | FR-4 (4.6t) 10 layers | |||||||||||
| Power feed method | Screw terminal and faston terminal | |||||||||||
|
||||||||||||
| Order Code Table | |||||
| Order code | No. of slots | System slot | Size | | No. of layers |
| 650-CPCI08WR | 8 | Right side from the front face | 178.18 x 261.95 | 4.6 | 10 |
| 650-CPCI07WR | 7 | Right side from the front face | 157.86 x 261.95 | 4.6 | 10 |
| 650-CPCI04WR | S | Right side from the front face | 96.9 x 261.95 | 4.6 | 10 |
| 650-CPCI03WR | 3 | Right side from the front face | 76.58 x 261.95 | 4.6 | 10 |
| 650-CPCI01WR | 1 | @ | 28.44 x 261.95 | 4.6 | 10 |
@
@
