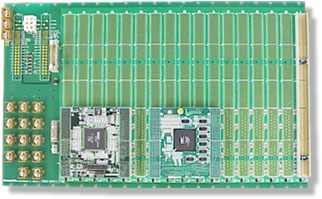

| Monolithic Backplane for a Duplex Plug-in Power Supply 650-CPCI17WL |
|
■Features
- Two connectors for plug-in power supply conforming to the PICMG2.11 (POWER INTERFACE) specification are mounted.
The CPCI main bus is a 17-slot size with the mounted pallet type bridge board (651-PPBB64RHB), and the peripheral slots (16 slots) can be fully accessible.
 |
 |
| Specifications | |
| PCB specification | FR-4 (4.6t), 10 layers |
| Connector | 2mm HM connector |
| Supply power capacity | +5V (Max 140A) +3.3V (Max 170A) +12V (Max 10A) -12V (Max10A) |
| Characteristic impedance | 65Ω±10% |
