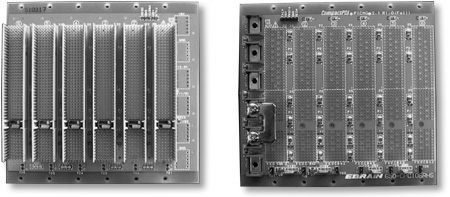

| Backplane PICMG2.1 Rev1.0 3U Comforming to Hot Swap 650-CPCI06RHS |
|
■Features
- This is a 3U-size backplane with the connectors P1 and P2 conforming to PICMG2.1 REV1.0 (Hot Swap Specification).
This backplane may be made compatible with the basic Hot Swap system or the full Hot Swap system. - The characteristic impedance is set to 65Ω±10％.
- This backplane is based on the No Hardware Connection Control specification.
 |
 |
| Specifications | |
| PCB specification | FR-4 (4.6t), 10 layers |
| Connector | 2mm HM connector |
| Power feed method | Screw terminal and faston terminal ＋5V （MAX60A） ＋3.3V （MAX30A） VI/O （MAX30A） ＋12V （MAX10A） −12V （MAX10A） |
