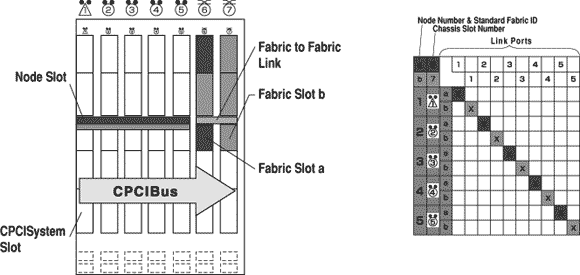

650-CDFP07WL　　Pin Assignment Table




Fabric Slot J4 Pin Assignment
25 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND J4
C
O
N
N
E
C
T
O
R
24 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
23 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND

22

 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
21 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
20 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
19 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
18 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
17 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
16 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
15 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
14 RAL #4005 KEY
13
12
11 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
10 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
9 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
8 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
7 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
6 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
5 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
4 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
3 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
2 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
1 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
Pin Z A B C D E F

Node Slot J3 Pin Assignment
19 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND J3
C
O
N
N
E
C
T
O
R
18 GND LPa_DA+ LPa_DA- GND LPa_DC+ LPa_DC- GND
17 GND LPa_DB+ LPa_DB- GND LPa_DD+ LPa_DD- GND
16 GND LPb_DA+ LPb_DA- GND LPb_DC+ LPb_DC- GND
15 GND LPb_DB+ LPb_DB- GND LPb_DD+ LPb_DD- GND
14 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
13 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
12 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
11 　 BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) 　
10 　 BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) 　
9 　 BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) 　
8 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
7 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
6 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
5 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
4 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
3 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
2 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
1 GND BP(I/O) BP(I/O) BP(I/O) BP(I/O) BP(I/O) GND
Pin Z A B C D E F

Fabric Slot J3 Pin Assignment
19 GND SGA4 SGA3 SGA2 SGA1 SGA0 GND J3
C
O
N
N
E
C
T
O
R
18 GND LPf_DA+ LPf_DA- GND LPf_DC+ LPf_DC- GND
17 GND LPf_DB+ LPf_DB- GND LPf_DD+ LPf_DD- GND
16 GND LP8_DA+ LP8_DA- GND LP8_DC+ LP8_DC- GND
15 GND LP8_DB+ LP8_DB- GND LP8_DD+ LP8_DD- GND
14 GND LP7_DA+ LP7_DA- GND LP7_DC+ LP7_DC- GND
13 GND LP7_DB+ LP7_DB- GND LP7_DD+ LP7_DD- GND
12 GND LP6_DA+ LP6_DA- GND LP6_DC+ LP6_DC- GND
11 　 LP6_DB+ LP6_DB- GND LP6_DD+ LP6_DD- 　
10 　 LP5_DA+ LP5_DA- GND LP5_DC+ LP5_DC- 　
9 　 LP5_DB+ LP5_DB- GND LP5_DD+ LP5_DD- 　
8 GND LP4_DA+ LP4_DA- GND LP4_DC+ LP4_DC- GND
7 GND LP4_DB+ LP4_DB- GND LP4_DD+ LP4_DD- GND
6 GND LP3_DA+ LP3_DA- GND LP3_DC+ LP3_DC- GND
5 GND LP3_DB+ LP3_DB- GND LP3_DD+ LP3_DD- GND
4 GND LP2_DA+ LP2_DA- GND LP2_DC+ LP2_DC- GND
3 GND LP2_DB+ LP2_DB- GND LP2_DD+ LP2_DD- GND
2 GND LP1_DA+ LP1_DA- GND LP1_DC+ LP1_DC- GND
1 GND LP1_DB+ LP1_DB- GND LP1_DD+ LP1_DD- GND
Pin Z A B C D E F

From [PICMG Specification]
