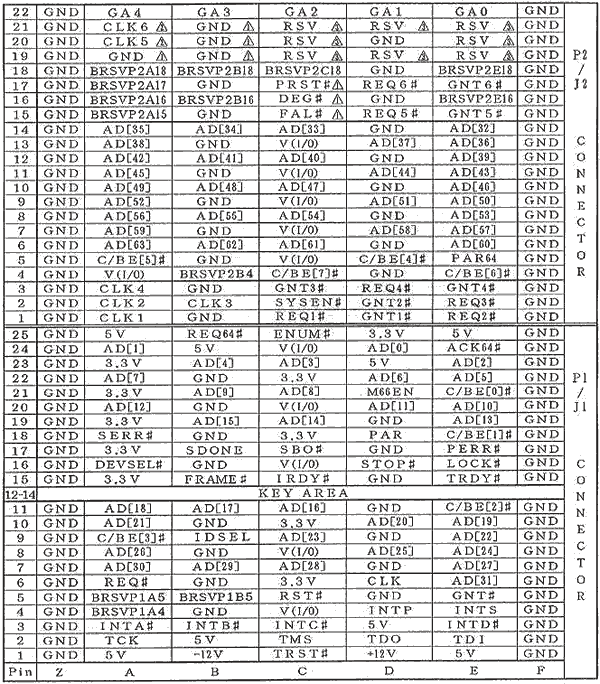

| PICMG2.0 REV2.1 Backplane Pin Assignment Table |
|
| △1 | To C15,C16,C17,B19,B20,B21,and A19 of P2, only system slots are connected. |
| △2 | CLK5 and CLK6 are not connected on the backplane. |
| △3 | Each RSV is open. |
From [PICMG Compact PCI Specification] |
|
 |
|
|
|
|
|
 |
 |
|
 |
|
|
