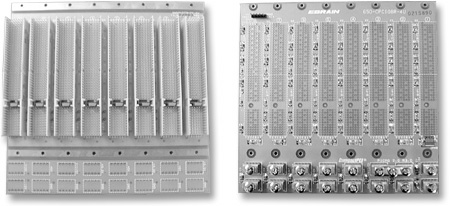

| Backplane PICMG2.0 Rev3.0 (3U Specification 4U-size) 650-CPCI08R-4U |
|
กFeatures
- This is a 4U-size (main bus width 3U) backplane conforming to the PICMG2.0 REV3.0.
- It can also be 33MHz 64-bit Hot Swap compliant.
- With an intensified power terminal, a stable power supply can be obtained. Mounting a power supply bus bar (option) can simplify power wiring.
| @ |  |
@ |
 |
| Specifications | |
| PCB specification | FR-4 (4.6t), 10 layers |
| Characteristic impedance | 65ถ}10 |
| Bus width | 64bit |
| Supply power capacity | {5V, 90A {3.3V, 90A {12V, 10A |12V, 10A |
@
@
