Backplane PICMG2.0 Rev3.0（3U Specification 4U-size）
650-CPCIxxR-4U Series


■Features
  1. This is a 4U-size (main bus width 3U) backplane conforming to the PICMG2.0 REV3.0.
  2. Backplanes of 5 slots, 6 slots and 7 slots can be optionally combined by using the CPCI bridge (651-PPBB64LHB). This permits scalable extension.
    A 3U/6U mixed system can be configured by a combination with a 7U-size backplane (650-CPCI○○WR-7U series) based on the 6U specification.
  3. With an intensified power terminal, a stable power supply can be obtained. Mounting a power supply bus bar (option) can simplify power wiring.

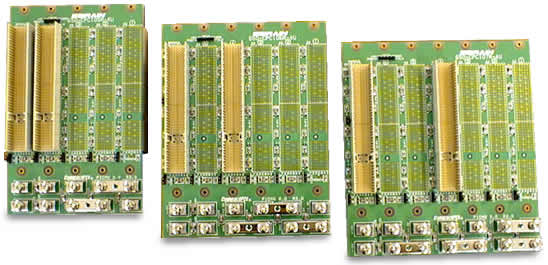

From left to right, Backplanes of 5 slots, 6 slots and 7 slots.


Specifications
PCB specification FR-4 (4.6t), 10 layers
Characteristic impedance 65Ω±10％
Bus width 64Bit
Supply power capacity
（７ slots）
+5V 60A
+3.3V 60A
+12V 10A
-12V 10A

Order Code Table
Order code No. of slots Size ｔ No.of layers
650-CPCI05R-4Ｕ ５ 110.4 x 158.3 4.6 10
650-CPCI06R-4Ｕ ６ 121.7 x 158.3 4.6 10
650-CPCI07R-4Ｕ ７ 142.0 x 158.3 4.6 10

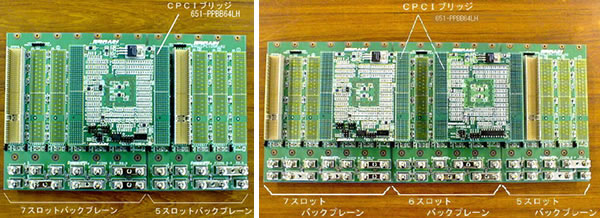

4U-size 12-slot Backplane which connected 4U-size 7-slot Backplane and 4U-size 5-slot Backplane using a CPCI Bridge.
 4U-size 18-slot Backplane which connected 4U-size 7-slot Backplane, 4U-size 6-slot Backplane, and 4U-size 5 slot Backplane using two CPCI Bridge.
