| Backplane PICMG2.0 Rev3.0 i6U Specification 7U-sizej 650-CPCIxxWR-7t Series |
|
กFeatures
- This is a 7U-size (main bus width 6U) backplane conforming to the PICMG2.0 REV3.0.
- Backplanes of 5 slots, 6 slots and 7 slots can be optionally combined by using the CPCI bridge (651-PPBB64LHB). This permits scalable extension.
A 3U/6U mixed system can be configured by a combination with a 4U-size backplane (650-CPCIR-4U series) based on the 3U specification. - With an intensified power terminal, a stable power supply can be obtained. Mounting a power supply bus bar (option) can simplify power wiring.
 |

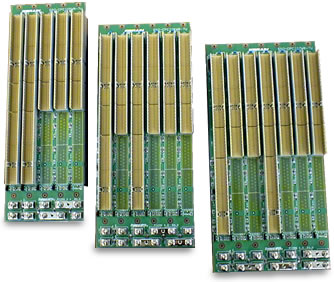

From left to right, Backplanes of 5 slots, 6 slots and 7 slots
 |
| Specifications | |||||||||
| PCB specification | FR-4 (4.6t), 10 layers | ||||||||
| Characteristic impedance | 65ถ}10 | ||||||||
| Bus width | 64Bit | ||||||||
| Supply power capacity iV slotsj |
|
||||||||
| PICMG2.0REV3.0@6t Specification 7t-Size Order Code Table | ||||
| Order code | No. of slots | Size (L x H) | | No.of layers |
| 650-CPCI05RW-7t | T | 110.4 x 291.6 | 4.6 | 10 |
| 650-CPCI06WR-7t | U | 121.7 x 291.6 | 4.6 | 10 |
| 650-CPCI07WR-7t | V | 142.0 x 291.6 | 4.6 | 10 |
| @ | @ | @ |

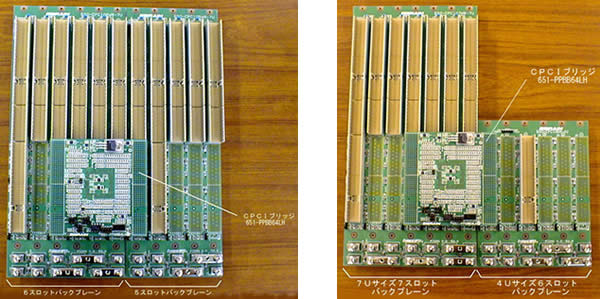

| 7U-size 11-slot backplane which connected 7U-size 6-slot backplane and 7U-size 5-slot backplane using a CPCI bridge. |
@ | The backplane extended to 7U-size 7 slots + 4U-size 6 slots using a CPCI bridge. |
@
@
