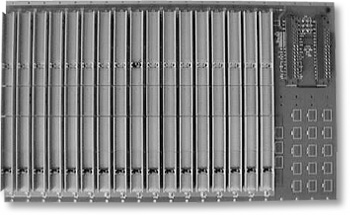

Single Standard Fabric Packet Switching Backplane PICMG2.16 Rev1.0 650-CSFP17WR

■Features

1. This is a 6U 17-slot CPCI/PSB bus backplane conforming to the PICMG2.16 REV1.0 specification.
2. P1 and P2 are based on the 64-bit bus wiring specification of the PICMG2.0 REV3.0 specification, and the single-end impedance (Zo) is set to 65Ω±10％.
   P3 and P5 are based on the Ethernet bus wiring specification compatible with the single fabric board (NodeLink a), and the differential impedance is set to 100Ω±10％.

Specifications
PCB specification	FR-4 (4.6t), 10 layers
Supply power capacity	＋5V, 140A ＋3.3V, 140A ±12V, 10A
