| Backplane PICMG2.1 Rev1.0 6U Comforming to Hot Swap 650-CPCIxxWRHS Family |
|
■Features
- This is a 6U-size backplane with the connectors P1 and P2 conforming to PICMG2.1 REV1.0 (Hot Swap Specification).
- The a, b, c, d, and e rows of system slot connectors P3, P4 and P5 are open so that they may be used as the rear panel I/O.
- The characteristic impedance is set to 65Ω±10％.
- For conforming to the Hot Swap specification, CLK5 and CLK6 wires are added.
- This backplane is based on the No Hardware Connection Control specification.

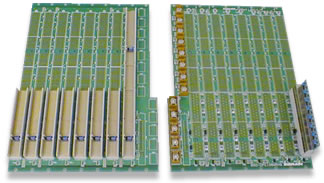

| （650-CPCI08WRHS） |
|
 |
| Specifications | ||||||||||||
| PCB specification | FR-4 (4.6t), 10 layers | |||||||||||
| Supply feed method | Screw terminal and faston terminal | |||||||||||
|
||||||||||||
